How to build a pergola on a patio step by step?
A patio pergola is a functional and aesthetic structure that can be easily adapted to the conditions of your patio or garden. Building it allows you to create a space that protects against sun and rain while enabling you to enjoy greenery and fresh air regardless of the weather conditions. You can build a pergola on a patio by yourself, keeping in mind the proper materials and installation techniques to ensure the stability of the structure for many years.
Its appearance also matters — a wooden garden pergola adds a natural character to the space, while metal pergolas stand out for their durability and modern style. Many people choose a classic wooden patio pergola because wood is relatively lightweight and easy to work with, making it possible to build the structure even without a professional team. If you are wondering how to build a pergola on a patio step by step, you will find detailed guidance in the following sections.
Planning the construction of a garden pergola – formalities and site preparation
Before starting work, always check your local planning rules. In England and Wales, small freestanding pergolas generally fall under Permitted Development Rights, so you do not need formal planning permission provided the structure:
- Does not exceed 2.5 m in height where it is within 2 m of a boundary (or 3 m elsewhere)
- Covers no more than 50% of the total garden area
- Is not positioned in front of the principal elevation facing a public highway
If your property is listed, in a conservation area or an Area of Outstanding Natural Beauty, or if the pergola exceeds these limits, you must apply to your local planning authority.
Even when planning permission is not required, correct site preparation is essential for longevity and safety. Start by marking out post positions at equal intervals to ensure even load distribution and a balanced appearance. Excavated holes should be at least 600 mm deep (or to frost line depth in colder regions) and filled with high-strength concrete to form solid footings. Once the foundations cure, erect vertical posts, secure them with metal anchors or concrete collars, and then attach beams and rafters to complete the load-bearing framework. This approach prevents movement from ground freeze–thaw cycles and provides a durable base for the pergola.
Choice of materials – wood, aluminum, and steel in pergola construction
A crucial stage is selecting materials needed to build a garden pergola. A wooden pergola is most often made from coniferous wood species such as pine, spruce, or larch, which are characterized by good durability and attractive appearance. If you want to make a wooden pergola, remember that the wood requires regular impregnation, application of protective agents, and protection against moisture and UV radiation.
Alternatives are metal pergolas made of galvanized steel or aluminum—these materials provide greater resistance to weather conditions, and the assembly of the pergola typically proceeds faster and requires less maintenance. A garden pergola lattice made of metal profiles can be a modern garden decoration while being exceptionally durable and stable.
Building a garden pergola – step by step
Building a garden pergola requires precision and the right tools. Basic tools include an angle grinder and an orbital sander, which serve to smooth wooden surfaces, as well as sandpaper with various grits, necessary in preparing elements and finishing stages.
Pergola fasteners are equally important to ensure the entire structure is stable and resistant to wind and other factors. To secure vertical beams on concrete foundations, ground anchors or stainless steel brackets are usually used, which provide durable and solid connections. Carry out the assembly of the pergola with the help of a laser level and a carpenter’s clamp, which helps maintain equal distances and proper structural alignment.
Type of roofing for the patio pergola – durability and functionality combined
Choosing the right type of roofing significantly impacts the comfort of using the pergola. Multi-wall polycarbonate is a popular solution protecting against rain while allowing light to pass through, which prevents darkening the space under the pergola. To minimize leaks, use aluminum profiles along with EPDM seals and screws with sealing washers.

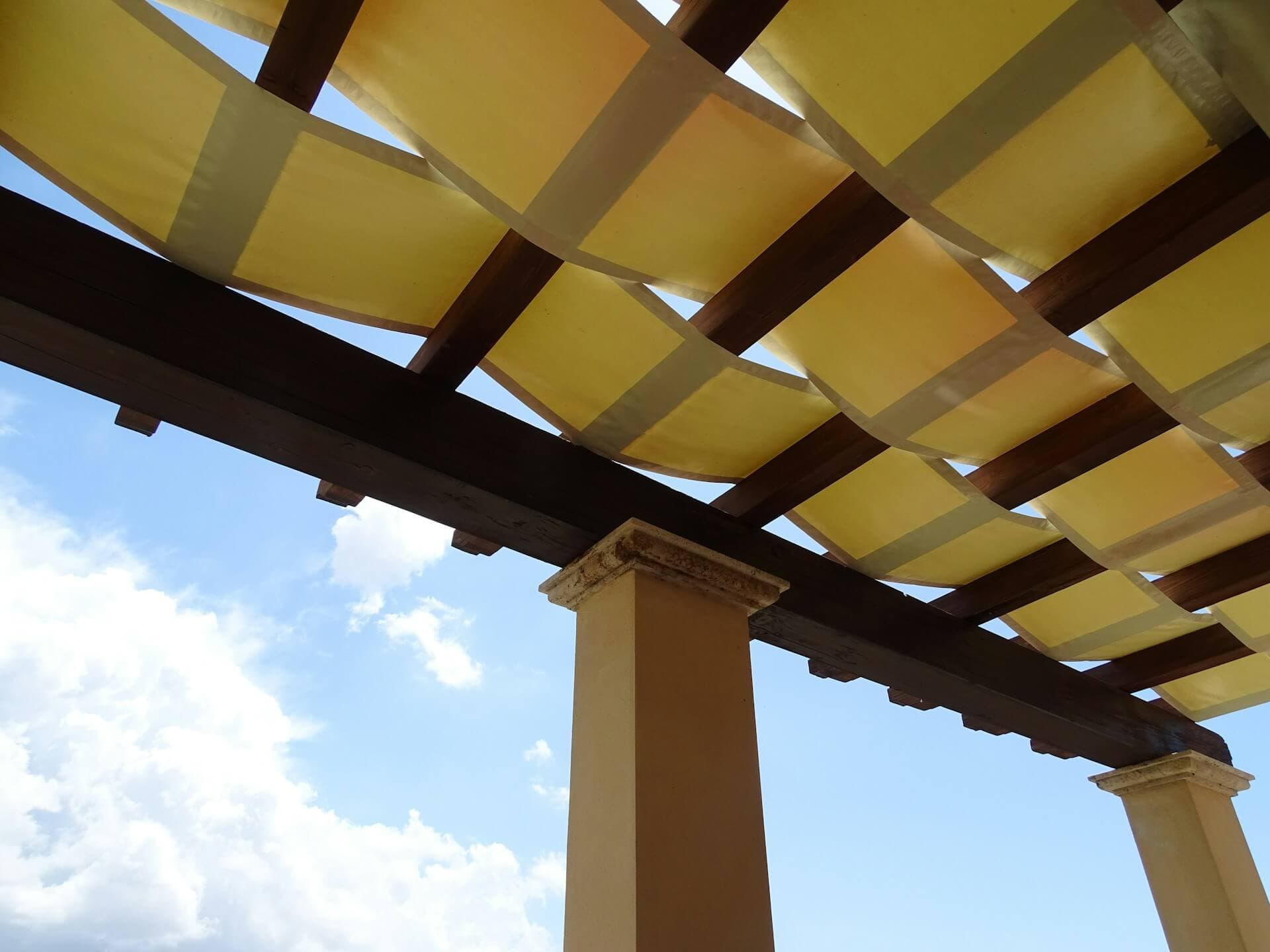

Another solution is waterproof fabric resistant to UV radiation, mounted on guide systems and spring tensioners enabling easy rolling or unrolling of the canopy according to needs. The most modern metal pergolas are often equipped with aluminum louvers with electric tilt controls that allow precise regulation of light and shade.
| Type of roofing | Advantages | Disadvantages | Examples of use | Approximate cost |
|---|---|---|---|---|
| Multi-wall polycarbonate | Lightweight, durable, transmits natural light, resistant to rain and snow, easy installation | Can thermally expand, requires sealing, less aesthetic | Wooden and metal patio pergolas | Medium |
| Waterproof fabric | Easy to roll and unroll, UV-resistant, aesthetic | Requires periodic maintenance, lower durability, susceptible to mechanical damage | Seasonal pergolas, flexible garden roofing | Low to medium |
| Aluminum louvers (electrically controlled) | Shade and ventilation control, modern appearance, high durability | High cost, requires electric power, more complex assembly | Modern metal pergolas, patio enclosures | High |
Finishing and maintaining the pergola
After completing the assembly of a wooden pergola, it is extremely important to thoroughly finish all structural elements. Carefully smooth all joints, edges, and surfaces with sandpaper of appropriate grit. This step protects the wood from splinters and significantly improves adhesion for subsequent impregnation and varnish coating. To streamline and speed up the process, use an angle grinder and an orbital sander, focusing especially on hard-to-reach places and edges prone to mechanical damage.
The next step is applying protective agents, which are key to the longevity of the garden pergola. Impregnate to protect wood against moisture, low temperatures, and UV radiation which can cause fading and cracking of surfaces. It is recommended to apply at least two layers of primer impregnation for deep protection, then two layers of varnish that create a flexible, waterproof coating. This protection system preserves the natural look of the wood and significantly extends the pergola’s lifespan. Repeat maintenance treatments every 2–3 years, especially if the structure is intensively exposed to weather conditions.
Additionally, it is worth protecting critical structural points, such as beam ends, joints, or mounting holes. Using masking strips and caps on screws and bolts effectively protects wood against moisture ingress, delaying the degradation of these sensitive areas.
Comfort and aesthetic additions to the pergola
A garden pergola is not only a solid structure but also a space for relaxation, so it is worth equipping it with elements that increase comfort and attractiveness. LED strips mounted in the pergola’s structural profiles are increasingly popular. They emit soft light allowing you to enjoy the pergola even after dusk. Lighting control via remote or mobile app provides full freedom to adjust intensity and color temperature, tailoring the atmosphere to the occasion and mood.
Another feature improving pergola functionality is external blinds or vertical shades. They offer effective protection against strong sun and wind and can also serve as an additional privacy shield. Thanks to them, the patio or garden pergola becomes a versatile place that works well even in changing weather conditions.
Don’t forget decorations that give the pergola an individual character and make it cozier. Hanging flower pots attached to the pergola lattice introduce natural colors and scents to the space. Swings, comfortable armchairs, or soft cushions make the area an ideal place for relaxation and social gatherings. Such a furnished garden pergola becomes an oasis of peace, style, and comfort in your garden.
Costs and schedule for building a patio pergola
When planning how to build a pergola on a patio, it is worth familiarizing yourself in advance with basic cost and timeline issues for the entire project. This knowledge helps better budget and avoid delays during assembly, as well as consciously choose materials and tools. A pergola is a structure that can significantly transform the look and functionality of your patio or garden, so it is best to approach its construction thoroughly prepared.
Approximate costs for a pergola about 4×3 meters:
-
Materials (timber, fixings, polycarbonate or fabric roofing): £600–1 050, depending on wood quality (e.g. larch) and accessories.
-
Tool hire (drill, circular saw, angle grinder, laser level): £100–170 for a long weekend.
-
Labour (specialist team of 2–3 people, 3–5 days): £800–1 350, varying by region and complexity.
-
Timber treatment (preservative and wood finish): £60–120.
-
Optional extras (LED lighting, blinds, decorative elements): from £60 upwards.
Total costs for a basic medium-size wooden pergola therefore range from around £1 620 to £2 750. If you opt for aluminium or bioclimatic models, expect budgets of £2 660–3 800 or more.
Schedule for building a patio pergola – example work breakdown:
- Day 1–2: Site preparation, foundation excavation, and pouring concrete foundations. This is a crucial stage to ensure structural stability and protection against frost (recommended depth about 80 cm).
- Day 3: Assembly of vertical posts and main load-bearing beams. Proper leveling and vertical alignment of posts are essential for the structure’s stability.
- Day 4: Mounting crossbeams, roof structure, and roofing installation (polycarbonate, fabric, or louvers). Additional elements, such as blinds or lighting systems, can also be installed simultaneously.
- Day 5: Finishing elements – sanding surfaces (e.g., sandpaper, angle/orbital sander), applying impregnation and varnish, and installing any lighting and decorations.
FAQ
Does a freestanding pergola need anchoring?
Yes, a freestanding pergola should be solidly anchored, most often using ground anchors or fasteners connected to concrete foundations to ensure structural stability and resistance to wind and other weather conditions.
What should you place your pergola on?
The best base for a pergola is a stable and level ground such as concrete foundations set below the frost line (around 80 cm deep). For challenging conditions, ground anchors or reinforced concrete slabs can be used to provide a durable and safe base.
Does a patio pergola require notification?
In the UK, a patio pergola generally does not require planning permission under Permitted Development Rights, provided it meets specific criteria. The structure must not exceed 2.5 metres in height if positioned within 2 metres of the property boundary, or 3 metres if located further away. Additionally, the pergola must not cover more than 50% of the garden area and should not be installed at the front of the house facing a public road.
However, planning permission may be required if your property is a listed building, located in a conservation area, or if the pergola exceeds the permitted size limits. It's advisable to check with your local council before installation to ensure compliance with any specific local restrictions or planning constraints that may apply to your area.
