KMR

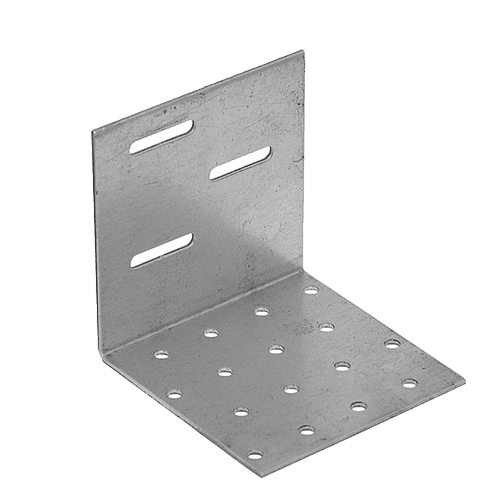

Application: Standard angle sections with versatile perforation. The number of openings placed in them ensures that these angle sections help to complete many simple as well as complex connections. Presence of bean-shaped openings facilitated fixing of unorthodox elements and elimination of dilatation stresses. A possibility of certain scope of shifting connected elements against each other eliminates loads inflicted by deformation or timber humidity level change. Material: DX51D + Z275. Thickness: 20 [mm]. Fixing: Carpentry nails ANCHOR ø4; screws for timber ø10; bolts M10 M12; concrete anchors M10 M12.
Art. | Symbol | Product name | A [mm] | B [mm] | C [mm] | Thickness [mm] | Anti -corrosion protection | Unit weight [kg] | Quantity in package | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
 | 4231 | KMR 1 | Angle bracket | 60 | 80 | 60 | 2,0 | ZN | 0.120 | 20 szt | |
 | 4232 | KMR 2 | Angle bracket | 60 | 80 | 60 | 2,0 | ZN | 0.120 | 20 szt | |
 | 4233 | KMR 3 | Angle bracket | 80 | 80 | 80 | 2,0 | - | 0.180 | 20 szt | |
 | 4234 | KMR 4 | Angle bracket | 80 | 80 | 80 | 2,0 | - | 0.180 | 20 szt | |
 | 4235 | KMR 5 | Angle bracket | 100 | 100 | 100 | 2,0 | - | 0.280 | 20 szt | |
 | 4236 | KMR 6 | Angle bracket | 100 | 100 | 100 | 2,0 | - | 0.280 | 20 szt | |
 | 4237 | KMR 7 | Angle bracket | 60 | 60 | 60 | 2,0 | ZN | 0.100 | 20 szt | |
 | 4238 | KMR 8 | Angle bracket | 80 | 80 | 80 | 2,0 | ZN | 0.190 | 20 szt | |
 | 4239 | KMR 9 | Angle bracket | 100 | 100 | 100 | 2,0 | - | 0.290 | 20 szt |
KMR 1 | 4231
Angle bracket
A [mm]
60
B [mm]
80
C [mm]
60
Thickness [mm]
2,0
Anti -corrosion protection
ZN
Unit weight [kg]
0.120
Quantity in package
20 szt
KMR 2 | 4232
Angle bracket
A [mm]
60
B [mm]
80
C [mm]
60
Thickness [mm]
2,0
Anti -corrosion protection
ZN
Unit weight [kg]
0.120
Quantity in package
20 szt
KMR 3 | 4233
Angle bracket
A [mm]
80
B [mm]
80
C [mm]
80
Thickness [mm]
2,0
Anti -corrosion protection
-
Unit weight [kg]
0.180
Quantity in package
20 szt
KMR 4 | 4234
Angle bracket
A [mm]
80
B [mm]
80
C [mm]
80
Thickness [mm]
2,0
Anti -corrosion protection
-
Unit weight [kg]
0.180
Quantity in package
20 szt
KMR 5 | 4235
Angle bracket
A [mm]
100
B [mm]
100
C [mm]
100
Thickness [mm]
2,0
Anti -corrosion protection
-
Unit weight [kg]
0.280
Quantity in package
20 szt
KMR 6 | 4236
Angle bracket
A [mm]
100
B [mm]
100
C [mm]
100
Thickness [mm]
2,0
Anti -corrosion protection
-
Unit weight [kg]
0.280
Quantity in package
20 szt
KMR 7 | 4237
Angle bracket
A [mm]
60
B [mm]
60
C [mm]
60
Thickness [mm]
2,0
Anti -corrosion protection
ZN
Unit weight [kg]
0.100
Quantity in package
20 szt
KMR 8 | 4238
Angle bracket
A [mm]
80
B [mm]
80
C [mm]
80
Thickness [mm]
2,0
Anti -corrosion protection
ZN
Unit weight [kg]
0.190
Quantity in package
20 szt
KMR 9 | 4239
Angle bracket
A [mm]
100
B [mm]
100
C [mm]
100
Thickness [mm]
2,0
Anti -corrosion protection
-
Unit weight [kg]
0.290
Quantity in package
20 szt
