GPY

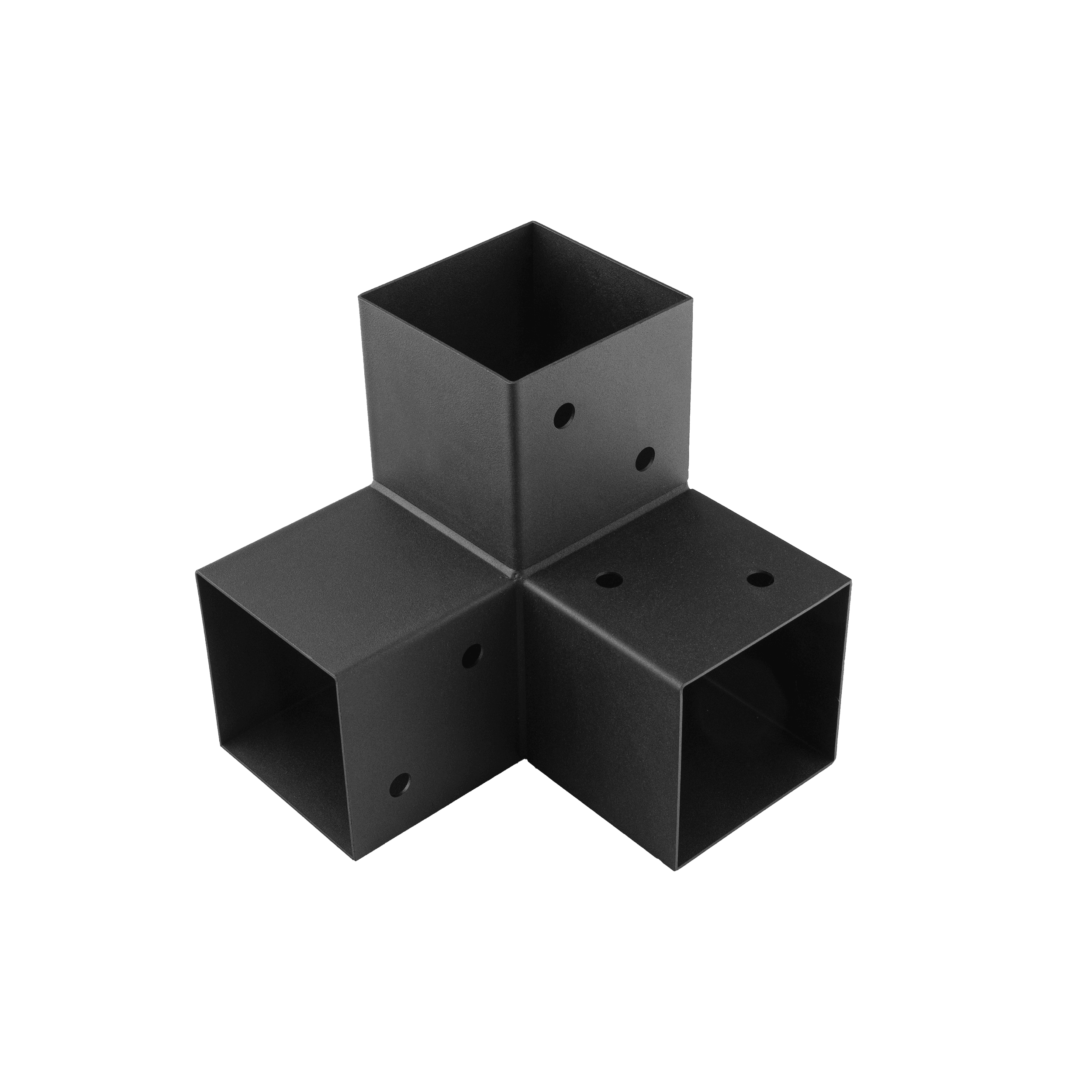

Pergola connectors are a key element for anyone who dreams of creating their own garden structure. These specially designed components allow a pergola. gazebo or other architectural elements in green spaces to be built easily and efficiently. Finished in elegant black. these connectors not only ensure the solidity and durability of the structure. but also significantly enhance its aesthetics. In addition. dedicated bolt caps perfectly mask the mounting elements. creating a smooth and consistent surface that further emphasises the elegant character of every project.
Art. | Symbol | Product name | A [mm] | B [mm] | C [mm] | Thickness [mm] | Anti -corrosion protection | Unit weight [kg] | Quantity in package | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
 | 96079072 | GPY 70 | Square beam wall connector | 72 | 165 | 162 | 1,5 | mal. proszek | 1.050 | 4 pcs | |
 | 96079092 | GPY 90 | Square beam wall connector | 92 | 185 | 182 | 1,5 | mal. proszek | 1.450 | 4 pcs | |
 | 96079102 | GPY 100 | Square beam wall connector | 102 | 206 | 202 | 2,0 | mal. proszek | 2.450 | 4 pcs | |
 | 96079122 | GPY 120 | Square beam wall connector | 122 | 226 | 222 | 2,0 | mal. proszek | 3.100 | 4 pcs |
GPY 70 | 96079072
Square beam wall connector
A [mm]
72
B [mm]
165
C [mm]
162
Thickness [mm]
1,5
Anti -corrosion protection
mal. proszek
Unit weight [kg]
1.050
Quantity in package
4 pcs
GPY 90 | 96079092
Square beam wall connector
A [mm]
92
B [mm]
185
C [mm]
182
Thickness [mm]
1,5
Anti -corrosion protection
mal. proszek
Unit weight [kg]
1.450
Quantity in package
4 pcs
GPY 100 | 96079102
Square beam wall connector
A [mm]
102
B [mm]
206
C [mm]
202
Thickness [mm]
2,0
Anti -corrosion protection
mal. proszek
Unit weight [kg]
2.450
Quantity in package
4 pcs
GPY 120 | 96079122
Square beam wall connector
A [mm]
122
B [mm]
226
C [mm]
222
Thickness [mm]
2,0
Anti -corrosion protection
mal. proszek
Unit weight [kg]
3.100
Quantity in package
4 pcs
